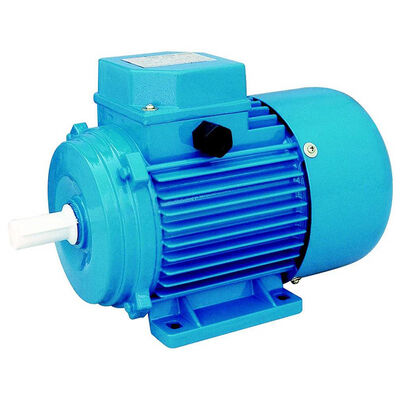

Frame Size 56 to 112 Single Phase Induction Motor Mounting B14 Power Rating 0.5 HP to 5 HP Suitable for Various Machinery
جزئیات محصول
| Power | 0.37kw/0.5hp | Frame Size | 56#-112# |
|---|---|---|---|
| Motortype | Induction Motor | Ambient Temperature | -15 ℃-40℃ |
| Powerrating | 0.5 HP To 5 HP | Number Of Poles | 2/4/6 |
| Item Name | Single Phase Induction Motor | Frequency | 50 Hz / 60 Hz |
| برجسته کردن | Single Phase Induction Motor B14 Mounting,Frame Size 56-112 Induction Motor,0.5 HP to 5 HP Induction Motor,Frame Size 56-112 Induction Motor,0.5 HP to 5 HP Induction Motor |
||
توضیحات محصول
Single Phase Induction Motor Overview
The ZOZHI Single Phase Induction Motor (Model ML/MY) is a highly efficient and reliable AC motor designed for industrial and commercial applications where three-phase power is unavailable. This asynchronous motor delivers consistent performance, durability, and energy efficiency across various mechanical systems.
Key Specifications
| Specification | Details |
|---|---|
| Power Rating | 0.5 HP to 5 HP (0.37 kW to 3.7 kW) |
| Frame Sizes | 56 to 112 |
| Pole Configuration | 2, 4, or 6 poles |
| Mounting Options | IMB3 (foot), B5 (flange), B35 (foot & flange), V1 (vertical) |
| Frequency | 50 Hz / 60 Hz |
| Voltage Tolerance | ±5% |
Motor Features & Benefits
- Versatile Power Range: Available from 0.5 HP to 5 HP to match specific load requirements
- Flexible Speed Options: 2, 4, or 6 pole configurations for customized speed and torque
- Multiple Mounting Types: IMB3, B5, B35, and V1 for easy integration into existing systems
- Stable Operation: ±5% voltage tolerance ensures reliable performance in fluctuating power conditions
- Low Maintenance: Brushless asynchronous design reduces maintenance needs and enhances durability
- Quiet Operation: Smooth running with minimal noise and vibration
Industrial Applications
This single phase induction motor is ideal for various applications including:
- Water pumps and irrigation systems
- Compressors and air handling equipment
- Fans and ventilation systems
- Conveyors and material handling equipment
- Small machinery and workshop equipment
- Agricultural processing machines
- Residential and commercial appliances
Product & Order Information
| Attribute | Details |
|---|---|
| Brand & Model | ZOZHI ML/MY |
| Manufacturing Origin | China |
| Certification | CE Certified |
| Minimum Order | 1 unit |
| Unit Price | USD 64 |
| Packaging | CTNS or veneer cases |
| Delivery Time | 15 days |
| Supply Capacity | 10,000 units |
| Payment Terms | 100% before shipment |
Packaging & Shipping
Each motor is carefully wrapped in protective foam or bubble wrap and placed in sturdy cardboard boxes with additional cushioning. Exterior labeling includes product details and handling instructions. We ship via trusted carriers with tracking services, using ground, air, or expedited delivery options to ensure timely and secure arrival.
Frequently Asked Questions
What is the brand and model number of this Single Phase Induction Motor?
The brand name is ZOZHI, and the model number is ML/MY.
Where is the Single Phase Induction Motor manufactured?
This motor is made in China.
Is the Single Phase Induction Motor certified?
Yes, it has CE certification.
What is the minimum order quantity and price for this motor?
The minimum order quantity is 1 unit, and the price is USD 64 per unit.
How is the product packaged and what is the delivery time?
The motor is packaged in CTNS or veneer cases, and the delivery time is approximately 15 days.
What are the payment terms and supply ability for the Single Phase Induction Motor?
Payment terms are 100% before shipment, and the supply ability is 10,000 units.
