• Fuan Zhongzhi Pump Co., Ltd.
    وادیم زابیاکا
    Zhongzhi واقعا در طراحی و تولید محصولات بسیار خوب است. مهندسین با تجربه بسیار خوب ما را خدمت می کنند.
  • Fuan Zhongzhi Pump Co., Ltd.
    Mr.Reuben kimwolo
    با کیفیت خوب، تولید کنندگان بزرگ، ما با محصولات شما خوشحالیم.
  • Fuan Zhongzhi Pump Co., Ltd.
    آقای ییلماز ترککوگلو
    بیش از 3 سال با هم کار کرده اند بسیار حرفه ای. همه محصولات خوب در انواع تجهیزات ما کار می کنند. متشکرم.
تماس با شخص : Semmy Wu
شماره تلفن : 05936532656
واتساپ : +8613706040131

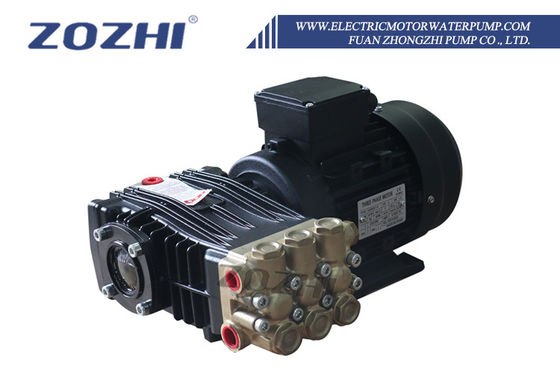

High-Efficiency 1.1KW 1.5HP 87/61mm Three-Phase Aluminium Electric Induction Motor 50Hz 24mm Hollow Shaft Waterproof Hawk Pump

محل منبع چین
نام تجاری ZOZHI
گواهی CE,CCC,ISO9001
شماره مدل HS90S-4
مقدار حداقل تعداد سفارش 2 عدد
قیمت USD87piece
جزئیات بسته بندی مورد CTNS/ونیر
زمان تحویل 14 روز کار
شرایط پرداخت T/T ، L/C
قابلیت ارائه 10000 قطعه در 30 روز

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
سرعت ناهمزمان 1400 دور در دقیقه کلاس عایق ج
محفظه IP55 دمای محیط 40 درجه سانتیگراد
اندازه قاب 100 طبقه حفاظت IP55
رنگ قابل تنظیم قدرت 1.5HP/1.1kW
وظیفه S1 (پیوسته) گشتاور عالی
ارتفاع ≤1000 متر فرکانس دارای امتیاز 50 هرتز/60 هرتز
نوع نصب پا سوار شده است
برجسته کردن

7.5KW Hollow Shaft Motor,10HP Three-Phase Induction Motor,60Hz Frequency AC Induction Motor

,

10HP Three-Phase Induction Motor

,

60Hz Frequency AC Induction Motor

می توانید محصولات مورد نیاز خود را علامت بزنید و در صفحه پیام با ما ارتباط برقرار کنید.
پیام بگذارید
توضیحات محصول
Company Profile

Fuan Zhongzhi Pump Co., Ltd.

Established in 2006, Fuan Zhongzhi Pump Co., Ltd. The trademark registration "ZOZHI" has made it a modernized private enterprise. It is specialized in scientific research, production, sales and service, manufacturing various types of pumps, such as peripheral, centrifugal, jet, deep well, sewage pump, etc., as well as high-efficiency AC motors, alternators and diesel generators.

Zhongzhi pumps are widely utilized in shallow and deep well pumping, pipeline boosting, water tower boosting, garden irrigation, agricultural irrigation, and aquaculture drainage, etc.

Zhongzhi motors can be employed for general driving purposes, such as household appliances, pumps, fans, and recording meters, etc.

Zhongzhi generators are fully applied in communication systems, data centers, mining, power, highways, engineering companies, financial systems, hotels, railways, military, airports, commercial buildings, hospitals, factories, etc. We have established a global service system in collaboration with strategic partners. Our production of generator sets has become the backup power choice for the largest number of hotels, buildings, and industrial and mining enterprises.

Zhongzhi products are popular in over 70 countries including Europe, America, the Middle East, Africa, Southeast Asia, and others.

Motivated by our slogan "Solidarity, Exploration, Honest, Faith", we strive to become the global leader in providing comprehensive and reliable solutions to make this world a better place to live in.

1.1KW 1.5HP Three-Phase Hollow Shaft Motor 60Hz Frequency 1450RPM

This industrial-grade 1.5HP AC induction motor (1.1KW) delivers reliable, high-torque performance for demanding applications. Engineered with a precise 1400RPM speed and standardized three-phase 380V/50Hz power supply, it features an integrated 24mm hollow shaft for direct-drive solutions in water pumps, gearboxes, conveyors, and various machinery requiring efficient power transmission.

Key Specifications
Brand Name ZOZHI
Type Asynchronous Motor
Phase Three phase
Frequency 50Hz/60Hz
Efficiency IE 1
Protection Class IP55
Certification CCC/CE/ISO9001
Housing Aluminium
Insulation Class Class F
Duty S1 (continuous)
Motor Bearing C&U
Flange Size 87/61mm or 75/90mm
Overall Dimensions
High-Efficiency 1.1KW 1.5HP 87/61mm Three-Phase Aluminium Electric Induction Motor 50Hz 24mm Hollow Shaft Waterproof Hawk Pump 0 High-Efficiency 1.1KW 1.5HP 87/61mm Three-Phase Aluminium Electric Induction Motor 50Hz 24mm Hollow Shaft Waterproof Hawk Pump 1
Technical Specifications
Model Power Speed (RPM) Efficiency Current (A) Weight (kg) Voltage (V) Starting Current (A)
Single Phase 50Hz/2-pole
HSL90L1-2 2.5HP/1.8KW 2850 0.95 65 50 230 12.7
HSL90L2-2 3HP/2.2KW 2840 0.99 72 60 400 13.4
HSL100L2 3HP/2.2KW 2850 0.96 74 85 400 15.3
HSL132S1-2 5.5HP/4KW 2920 0.88 86 - 400 21.8
HSL132M2-2 20HP/15KW 2920 0.87 89.2 - 400 41
Three Phase 50Hz/2-pole
HS90L1-2 3HP/2.2KW 2820 0.86 78 - 400 4.9
HS90L2-2 4HP/3KW 2820 0.80 83 - 400 8.6
HS100L1-2 4HP/3KW 2840 0.83 81 - 400 6.6
HS100L2-2 5.5HP/4KW 2850 0.86 84 - 400 11.6
HS132S1-2 7.5HP/5.5KW 2900 0.86 84 - 400 15.4
HS132M2-2 20HP/15KW 2920 0.88 86 - 400 28
Three Phase 50Hz/4-pole
HS90L1-4 2HP/1.5KW 1400 0.82 78 - 400 3.2
HS90L2-4 3HP/2.2KW 1400 0.80 81 - 400 6.9
HS100L1-4 3HP/2.2KW 1420 0.80 81 - 400 5.1
HS112M1-4 4HP/3KW 1420 0.80 82 - 400 12.4
HS132S1-4 7.5HP/5.5KW 1430 0.90 85 - 400 17.8
HS132M2-4 15HP/11KW 1430 0.90 87 - 400 26
HS160M1-4 20HP/15KW 1450 0.86 89 - 400 29
