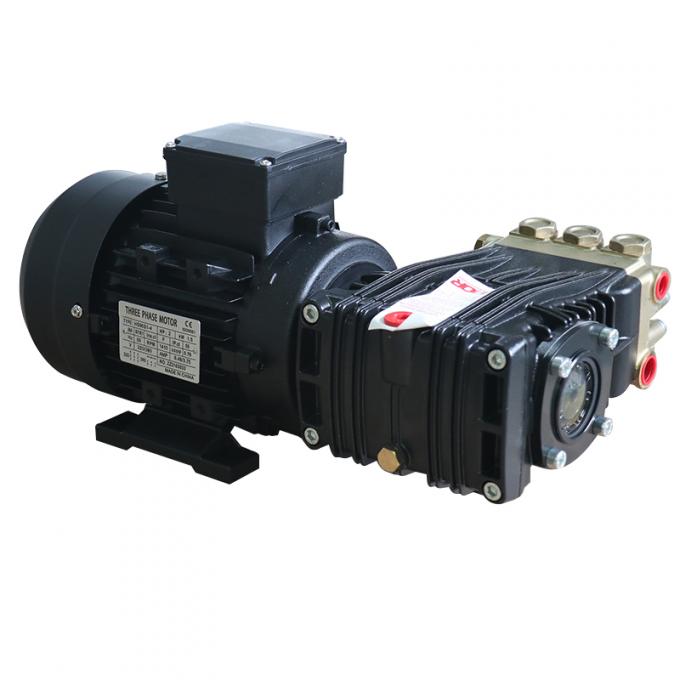

Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump

Place of Origin	CHINA
نام تجاری	ZOZHI
گواهی	CE,CCC,ISO9001
Model Number	HS112M2-4
Minimum Order Quantity	2pieces
قیمت	USD155-170piece
Packaging Details	CTNS/Veneer case
Delivery Time	14work days
Payment Terms	T/T, L/C
قابلیت ارائه	10000 قطعه در 30 روز

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

جزئیات محصول

پیام بگذارید

توضیحات محصول

Product Description

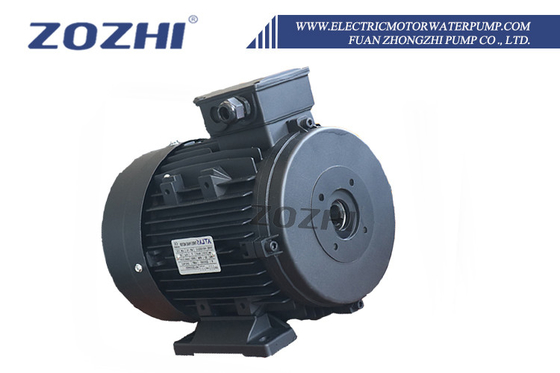

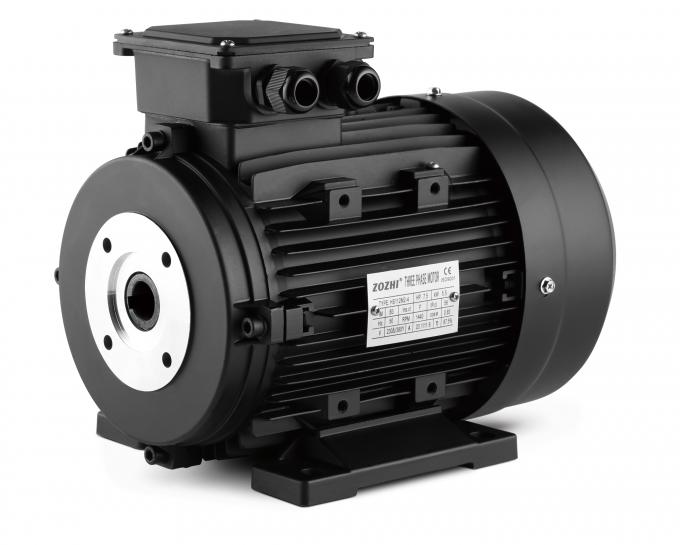

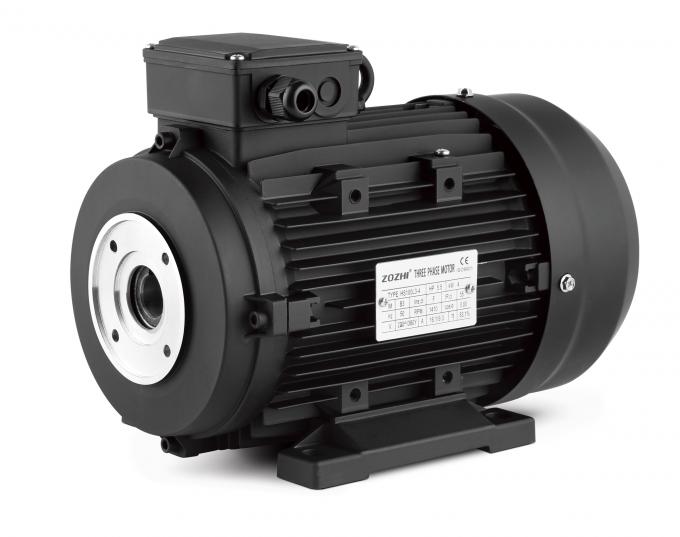

ASYNCHRONOUS HOLLOW SHAFT MOTOR

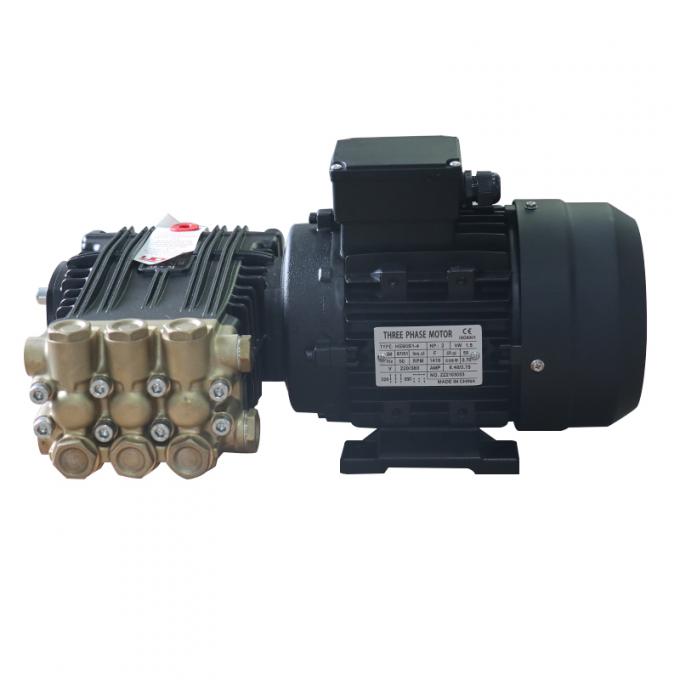

The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and at the same time provides a totally reliable and cost-efficient solution

Product name	Hollow shaft electric motor HS112M2-4
Motor housing	Aluminum
Power	5.5KW/7.5HP
Installation	B3 Hollow shaft 24mm
Flange size	B3 87/61mm or 75/90mm
Bearing	C&U
Shaft	C#45
Insulation	Class F
Protection	IP55
Voltage/Frequency	Three phase 380V OR other request
Speed	1400rpm
Application	Interpump

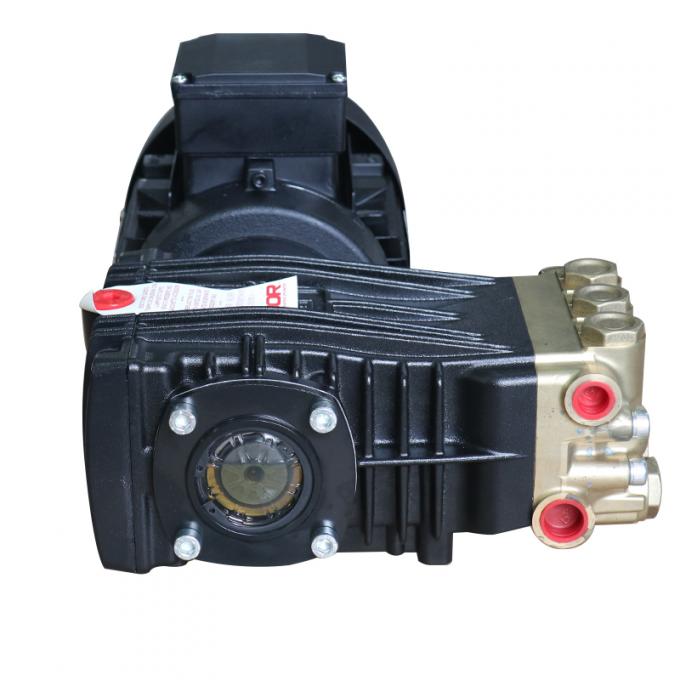

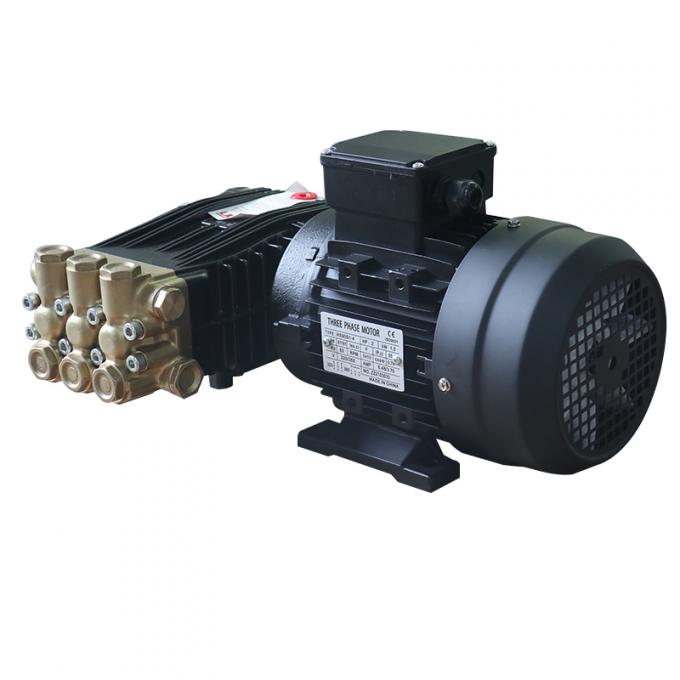

Application

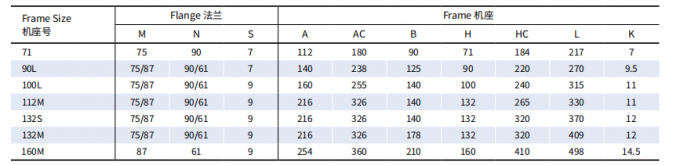

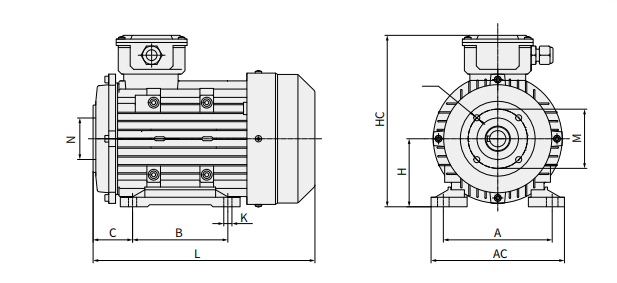

Specification

FRAME	POWER KW HP		RPM	COSφ P.F.	EFF.%	CAPACITOR (UF)	VOL	AMPEREA
Single-Phase 4 Poles 3000Rpm 50Hz
711-4	0.25	0.35	1360	0.91	57	10	230	2.1
712-4	0.37	0.5	1380	0.94	65	16	230	2.6
90L1-4	1.5	2	1400	0.98	70	45	230	9.5
100L1-4	1.85	2.5	1390	0.97	68	55	230	12.2
100L2-4	2.2	3	1350	0.99	74	70	230	13.1
100L3-4	2.6	3.5	1350	0.96	74	80	230	17.5
112M1-4	3	4	1400	0.98	74	80	230	18.1
112M2-4	3.7	5	1410	0.96	76	100	230	22
Three-Phase 4 Poles 1500Rpm 50Hz
711-4	0.25	0.35	1370	0.73	64		400	0.8
712-4	0.37	0.5	1350	0.74	68		400	1.1
713-4	0.55	0.75	1350	0.75	66		400	1.6
90L1-4	1.5	2	1400	0.82	78		400	3.4
90L2-4	2.2	3	1400	0.79	77		400	5.4
90L3-4	2.6	3.5	1400	0.8	78		400	7.4
100L1-4	2.2	3	1400	0.8	81		400	5.1
100L2-4	3	4	1410	0.8	81		400	6.9
100L3-4	4	5.5	1420	0.8	82		400	9.4
100M1-4	4.4	6	1420	0.82	83		400	10
112M1-4	4	5.5	1420	0.8	83		400	9
112M2-4	5.5	7.5	1430	0.82	84		400	12.1
112M3-4	6.2	8.5	1425	0.82	84		400	13.5
112L-4	7	9.5	1430	0.8	85		400	13.8
132S1-4	5.5	7.5	1430	0.82	84		400	11.7
132S2-4	7.5	10	1430	0.84	84		400	15.4
132M1-4	9.2	12.5	1430	0.9	85		400	17.8
132M2-4	11	15	1430	0.9	87		400	21.3
132M3-4	12.5	17	1430	0.88	84		400	26
160M1-4	15	20	1450	0.86	89		400	29
160M2-4	18.5	25	1450	0.86	90		400	34

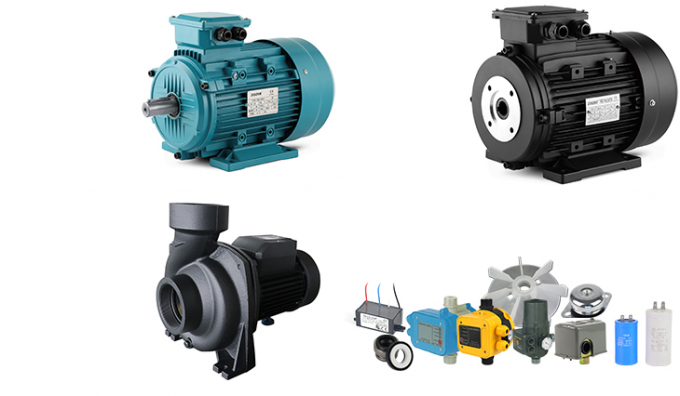

Other Products
